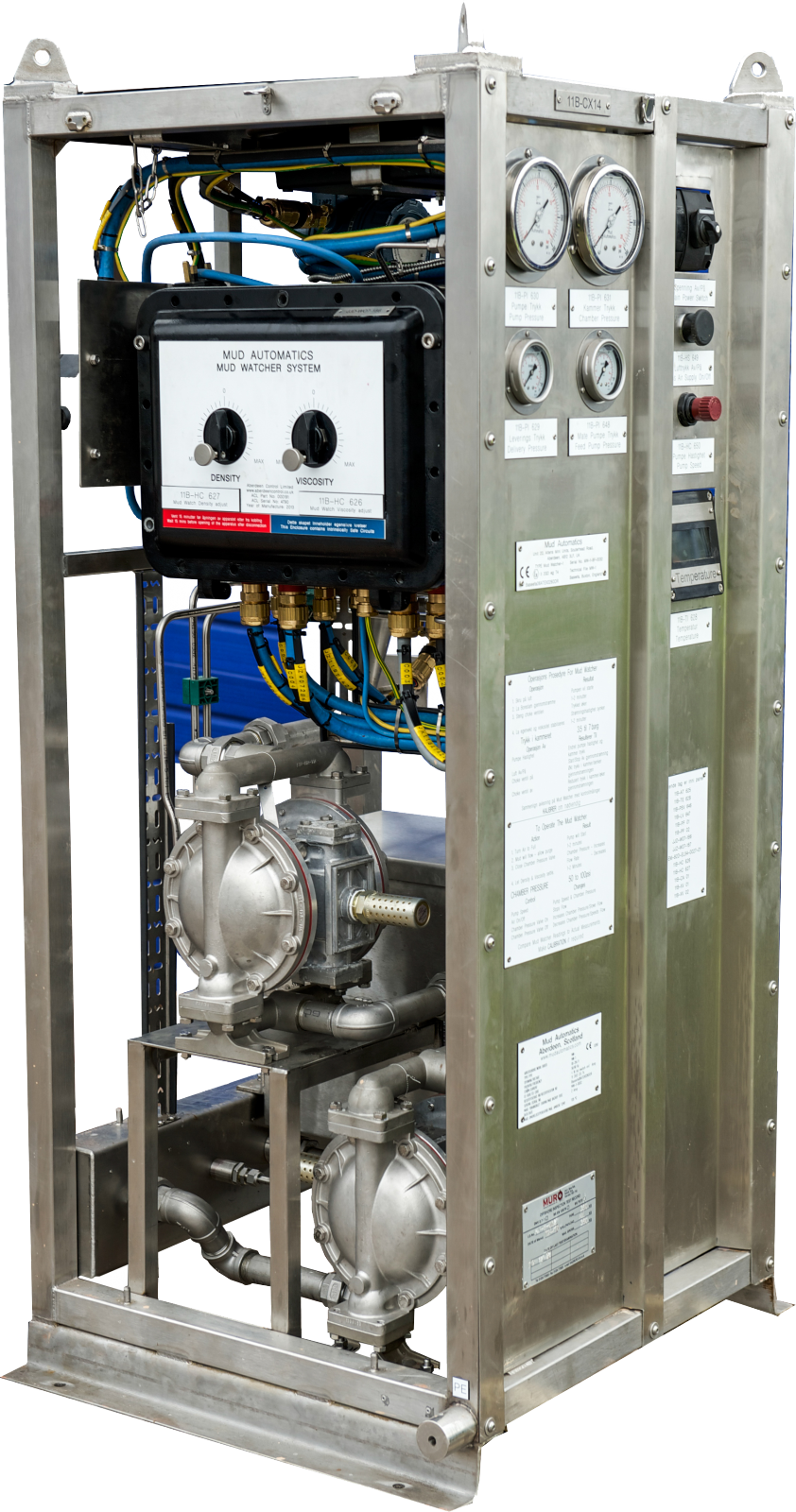

Monitoring mud condition, density, viscosity, temperature, OBM/WBM



Technical Specifications

Lifting Accessories
Mechanical: forklift entry points
Lifting eyes: 350 kg (if fitted)

Dimensions
Weight, dry: 250 kg
Height: 1730 mm
Width: 620 mm
Depth: 620 mm
Footprint: 0,38 m²

Technical Information
Air consumption: 7 bar
Electrical: Voltage 85-264, Less than 2 amps, Cycles 50-60 Hz
Signal, data: 4-20 m/amp to monitors

Pump 1
Sandpiper S1FB1A2SABS600
Double action diaphragm pump, 1”
Capacity: 170 litres/min
Max suction lift (dry) 4 m
Max suction lift (wet) 8 m
Self-priming
Max solids size 6 mm
Max temperature 80°C

Pump 2
Sandpiper SO5B1A2SABS600
Double action diaphragm pump, ½
Capacity: 56 litres/min
Max suction lift (dry) 4m
Max suction lift (wet) 8m
Self-priming
Max solids size 3 mm
Max temperature 80°C

Certification
Ex zone1 ATEX
